SATA 15p/F IDC Type Wire to Board Connector

Chongqing ShuangYi Precision Electronic Co., LTD
Contact Now

SATA 15p/F IDC Type Wire to Board Connector

Brand Name : Shuangyi

Model Number : SATA-C15F-X1X1A5-000R

Certification : ISO9001,ISO14001

Place of Origin : China

MOQ : 5000size

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000000/Year

Delivery Time : 7~10 work days

Packaging Details : 1.Custom polybag packing 2.Custom paper box packing 3.According to client's request

Connector Material : Nickel-plated copper

Conductor Material : Copper

Cable Length : 1 meter

Connector Orientation : Straight

Suit For Power : Yes

Meterial : PVC

Cable Color : Black

Speed : 12Gbps

Modify : 12G

Compatible Devices : Server

Host : 8643

Operating Temperature : 0°C to 70°C

Use : Controller Card

Insulation : PVC

Number Of Conductors : 8 Twisted Pair

Contact Now

I. Basic Information
Type: SATA 15P/F IDC TYPE
Number of pins: 15 pins
Interface Type: IDC (Insulation Displacement Connection)
Connection: Wire to Board

Second, the product characteristics
1. High-density connection: IDC type connectors are known for their high-density connection characteristics, can provide a large number of electrical connection points in a limited space.
2. Easy installation: IDC connection technology simplifies the installation process by realizing electrical connection through insulation displacement without stripping or soldering.
3. High reliability: IDC connectors show high reliability in long-term use and are suitable for application scenarios that require stable connections.
4. Widely used: SATA 15P/F IDC TYPE Wire to Board Connector is widely used in devices that require SATA interface connection, such as solid state drives, mobile hard drives, computer motherboards, and so on.

Technical Specifications
Electrical Performance: Meet the electrical performance requirements of SATA interface standard, including voltage withstand, insulation resistance, contact resistance, etc.
Data transmission: Support high-speed data transmission of SATA interface, the specific speed depends on the SATA version (e.g. SATA I, SATA II, SATA III, etc.).
Materials: The contact parts are usually made of high-quality conductive materials (e.g. phosphor bronze) with gold plating or other surface treatment to improve corrosion resistance and conductivity; the insulator materials have good insulation and high temperature resistance.

Application Areas
The connectors are widely used in computers, servers, storage devices and other fields to provide stable, high-speed data transmission and power connection for these devices.

V. Precautions
During use, please make sure that the pins of the connector correspond correctly with the soldering points of the circuit board or IDC slots to avoid poor connection or damage.
Please select the appropriate connection and installation method according to the product manual and actual situation.
Regularly check the contact status and electrical performance of the connector to ensure stable operation of the equipment.

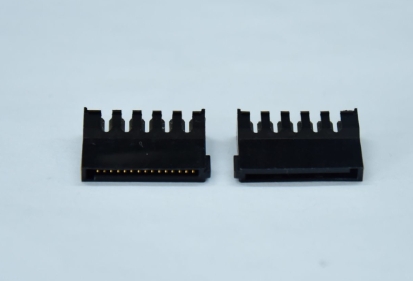

SATA 15p/F IDC Type Wire to Board Connector

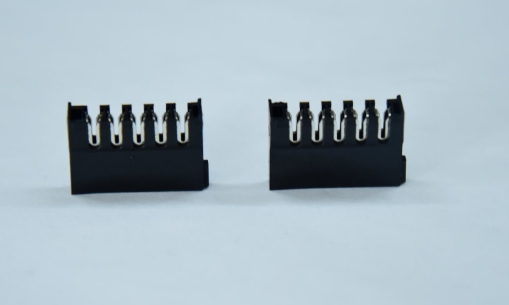

SATA 15p/F IDC Type Wire to Board Connector
